Cppcheck is a static analysis tool for C/C++ code. It provides unique code analysis to detect bugs and focuses on detecting undefined behaviour and dangerous coding constructs. The goal is to have very few false positives. Cppcheck is designed to be able to analyze your C/C++ code even if it has non-standard syntax (common in embedded projects).
The original name of this program was “C++check”, but it was later changed to “Cppcheck”. Despite the name, Cppcheck is designed for both C and C++.
Cppcheck is available both as open-source (this page) and as Cppcheck Premium with extended functionality and support. Please visit www.cppcheck.com for more information and purchase options for the commercial version.
Compiling
Cppcheck requires a C++ compiler with (partial) C++11 support. Minimum required versions are GCC 5.1 / Clang 3.5 / Visual Studio 2015.
When building the command line tool, PCRE is optional. It is used if you build with rules.
The minimum required Python version is 3.6.
# 安装 PCRE 开发库
# RHEL/CentOS
$ sudo yum install pcre-devel
# 确认 PCRE 开发库是否安装
# RHEL/CentOS
$ rpm -qa | grep pcre-devel
pcre-devel-8.42-6.tl3.x86_64
# 定位 pcre-config
$ which pcre-config || find /usr -name pcre-config 2>/dev/null
/usr/bin/pcre-config
GNU make
Simple, unoptimized build (no dependencies):
make
The recommended release build is:
make -j36 MATCHCOMPILER=yes DESTDIR=$HOME/tools/cppcheck/cppcheck-2.18.0 FILESDIR=-install HAVE_RULES=yes CXXFLAGS="-O2 -DNDEBUG -Wall -Wno-sign-compare -Wno-unused-function" install
Flags:
MATCHCOMPILER=yesPython is used to optimise cppcheck. The Token::Match patterns are converted into C++ code at compile time.DESTDIR=xxx FILESDIR=xxxSpecify folder where cppcheck files are installed (addons,cfg,platform)HAVE_RULES=yesEnable rules (PCREis required if this is used)CXXFLAGS="-O2 -DNDEBUG -Wall -Wno-sign-compare -Wno-unused-function"Enables most compiler optimizations, disables cppcheck-internal debugging code and enables basic compiler warnings.
$ ldd cppcheck
linux-vdso.so.1 (0x00007ffffdfb9000)
/$LIB/libonion_block.so => /lib64/libonion_block.so (0x00007fcf022ad000)
/$LIB/libonion.so => /lib64/libonion.so (0x00007fcf022a5000)
libpcre.so.1 => /lib64/libpcre.so.1 (0x00007fcf02229000)
libstdc++.so.6 => /lib64/libstdc++.so.6 (0x00007fcf02091000)
libm.so.6 => /lib64/libm.so.6 (0x00007fcf01f0d000)
libgcc_s.so.1 => /lib64/libgcc_s.so.1 (0x00007fcf01ef2000)
libpthread.so.0 => /lib64/libpthread.so.0 (0x00007fcf01ecf000)
libc.so.6 => /lib64/libc.so.6 (0x00007fcf01d07000)
libdl.so.2 => /lib64/libdl.so.2 (0x00007fcf01d00000)
/lib64/ld-linux-x86-64.so.2 (0x00007fcf024b3000)
About static analysis
The kinds of bugs that you can find with static analysis are:
- Undefined behavior
- Using dangerous code patterns
- Coding style
There are many bugs that you can not find with static analysis. Static analysis tools do not have human knowledge about what your program is intended to do. If the output from your program is valid but unexpected then in most cases this is not detected by static analysis tools. For instance, if your small program writes “Helo” on the screen instead of “Hello” it is unlikely that any tool will complain about that.
Static analysis should be used as a complement in your quality assurance. It does not replace any of:
- Careful design
- Testing
- Dynamic analysis
- Fuzzing
Manual
You can read the manual or download some articles.
Features
- Unique code analysis that detect various kinds of bugs in your code.
- Both command line interface and graphical user interface are available.
- Cppcheck has a strong focus on detecting undefined behaviour.
Unique analysis
Using several static analysis tools can be a good idea. There are unique features in each tool. This has been established in many studies.
So what is unique in Cppcheck.
Cppcheck uses unsound flow sensitive analysis. Several other analyzers use path sensitive analysis based on abstract interpretation, that is also great however that has both advantages and disadvantages. In theory by definition, it is better with path sensitive analysis than flow sensitive analysis. But in practice, it means Cppcheck will detect bugs that the other tools do not detect.
In Cppcheck the data flow analysis is not only “forward” but “bi-directional”. Most analyzers will diagnose this:
void foo(int x)
{
int buf[10];
if (x == 1000)
buf[x] = 0; // <- ERROR
}
Most tools can determine that the array index will be 1000 and there will be overflow.
Cppcheck will also diagnose this:
void foo(int x)
{
int buf[10];
buf[x] = 0; // <- ERROR
if (x == 1000) {}
}
Undefined behaviour
- Dead pointers
- Division by zero
- Integer overflows
- Invalid bit shift operands
- Invalid conversions
- Invalid usage of STL
- Memory management
- Null pointer dereferences
- Out of bounds checking
- Uninitialized variables
- Writing const data
Security
CVEs that was found using Cppcheck:
CVE-2017-1000249: file : stack based buffer overflow. This was found by Thomas Jarosch using Cppcheck. The cause is a mistake in a condition.
These CVEs are shown when you google “cppcheck CVE”. Feel free to compare the search results with other static analysis tools.
Security experts recommend that static analysis is used. And using several tools is the best approach from a security perspective.
Coding standards
| Coding standard | Open Source | Premium | |
|---|---|---|---|
| Misra C 2012 - original rules | Partial | Yes | |
| Misra C 2012 - amendment #1 | Partial | Yes | |
| Misra C 2012 - amendment #2 | Partial | Yes | |
| Misra C 2012 - amendment #3 | Yes | ||
| Misra C 2012 - amendment #4 | Yes | ||
| Misra C 2012 - Compliance report | Yes | ||
| Misra C 2012 - Rule texts | User provided | Yes | |
| Misra C 2023 | Yes | ||
| Misra C++ 2008 | Yes | ||
| Misra C++ 2023 | Yes | ||
| Cert C | Yes | ||
| Cert C++ | Yes | ||
| Autosar | Partial |
All checks
For a list of all checks in Cppcheck see: http://sourceforge.net/p/cppcheck/wiki/ListOfChecks.
Download
Clients and plugins
Cppcheck is integrated with many popular development tools. For instance:
- CLion - Cppcheck plugin
- Code::Blocks - integrated
- Eclipse - Cppcheclipse
- Tortoise SVN - Adding a pre-commit hook script
- Vim - Vim Compiler
- Visual Studio - Visual Studio plugin

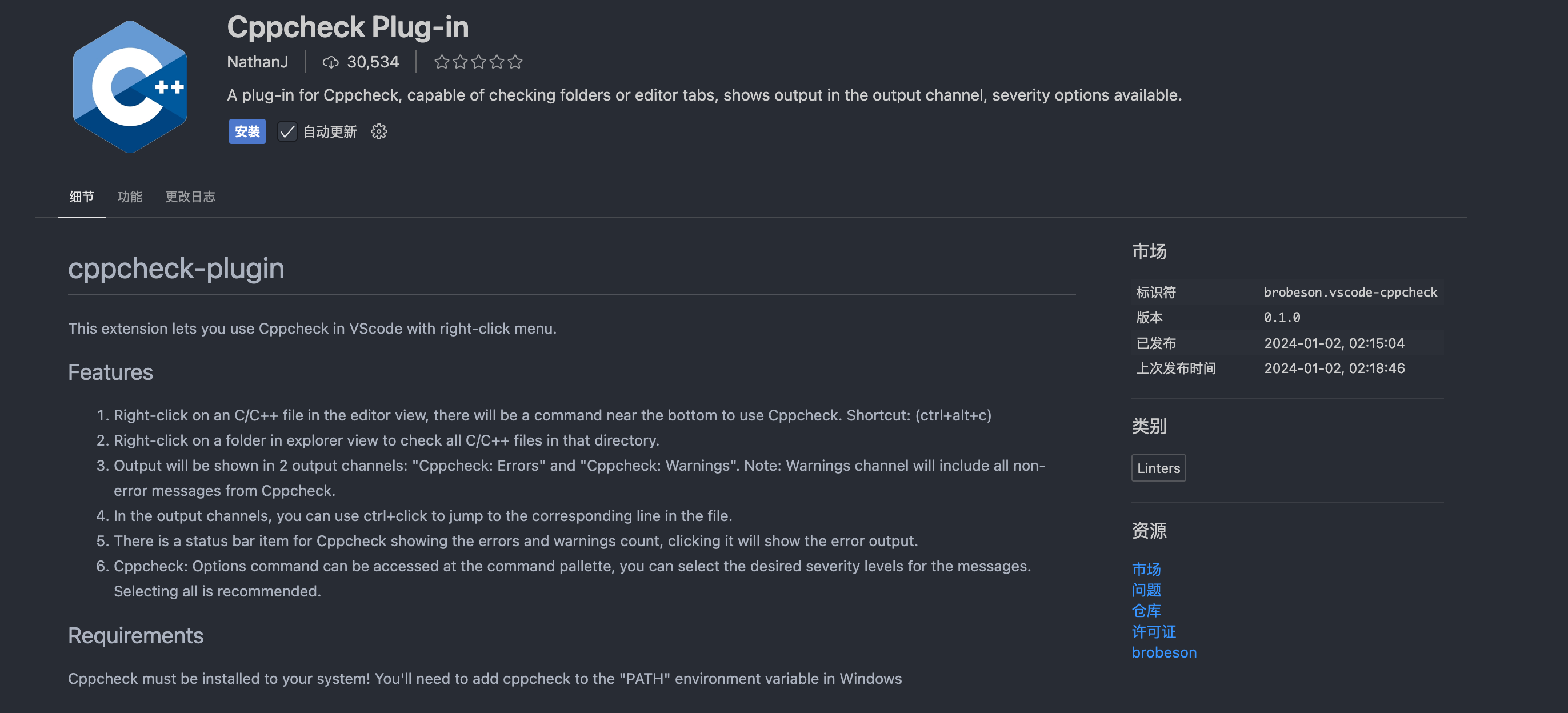

- VScode - VScode plugin
注意：Cppcheck must be installed to your system! You’ll need to add cppcheck to the “PATH” environment variable in Windows
Other static analysis tools
Using a battery of tools is better than using one tool. Each tool has unique code analysis and therefore we recommend that you also use other tools.
Cppcheck focus on bugs instead of stylistic issues. Therefore a tool that focus on stylistic issues could be a good addition.
Cppcheck tries very hard to avoid false positives. Sometimes people want to detect all bugs even if there will be many false warnings, for instance when they are working on a release and want to verify that there are no bugs. A tool that is much more noisy than Cppcheck might be a good addition.
Even tools that have the same design goals as Cppcheck will probably be good additions. Static analysis is such a big field, Cppcheck only covers a small fraction of it. No tool covers the whole field. The day when all manual testing will be obsolete(被淘汰的，过时的) because of some tool is very far away.
News
Cppcheck Manual
First test (check single file)
Here is some simple code:
#include <cstdio>
int main()
{
char a[10];
a[10] = 0;
return 0;
}
If you save that into file1.c and execute: cppcheck file1.c
The output from Cppcheck will then be:
Checking file1.c...
[file1.c:4]: (error) Array'a[10]' index 10 out of bounds
Checking all files in a folder
Normally a program has many source files. Cppcheck can check all source files in a directory: cppcheck path
If “path” is a folder, then Cppcheck will recursively check all source files in this folder:
Checking path/file1.cpp...
1/2 files checked 50% done
Checking path/file2.cpp...
2/2 files checked 100% done
Check files manually or use project file
With Cppcheck you can check files manually by specifying files/paths to check and settings. Or you can use a build environment, such as CMake or Visual Studio.
We don’t know which approach (project file or manual configuration) will give you the best results. It is recommended that you try both. It is possible that you will get different results so that to find the largest amount of bugs you need to use both approaches. Later chapters will describe this in more detail.
Check files matching a given file filter
With --file-filter=<str> you can set a file filter and only those files matching the filter will be checked.
For example: if you want to check only those files and folders starting from a subfolder src/ that start with “test” you have to type:
cppcheck src/ --file-filter=src/test*
Cppcheck first collects all files in src/ and will apply the filter after that. So the filter must start with the given start folder.
Excluding a file or folder from checking
To exclude a file or folder, there are two options. The first option is to only provide the paths and files you want to check:
cppcheck src/a src/b
All files under src/a and src/b are then checked.
The second option is to use -i, which specifies the files/paths to ignore. With this command no files in src/c are checked:
cppcheck -isrc/c src
This option is only valid when supplying an input directory. To ignore multiple directories supply the -i flag for each directory individually. The following command ignores both the src/b and src/c directories:
cppcheck -isrc/b -isrc/c
Clang parser (experimental)
By default Cppcheck uses an internal C/C++ parser. However there is an experimental option to use the Clang parser instead.
Install clang. Then use Cppcheck option --clang.
Technically, Cppcheck will execute clang with its -ast-dump option. The Clang output is then imported and converted into the normal Cppcheck format. And then normal Cppcheck analysis is performed on that.
You can also pass a custom Clang executable to the option by using for example --clang=clang-10. You can also pass it with a path. On Windows it will append the .exe extension unless you use a path.
Severities
The possible severities for messages are:
- error
when code is executed there is either undefined behavior or other error, such as a memory leak or resource leak
- warning
when code is executed there might be undefined behavior
- style
stylistic issues, such as unused functions, redundant code, constness, operator precedence, possible mistakes.
- performance
run time performance suggestions based on common knowledge, though it is not certain any measurable speed difference will be achieved by fixing these messages.
- portability
portability warnings. Implementation defined behavior. 64-bit portability. Some undefined behavior that probably works “as you want”, etc.
- information
configuration problems, which does not relate to the syntactical correctness, but the used Cppcheck configuration could be improved.
Possible speedup analysis of template code
Cppcheck instantiates the templates in your code.
If your templates are recursive this can lead to slow analysis that uses a lot of memory. Cppcheck will write information messages when there are potential problems.
Example code:
template <int i>
void a()
{
a<i+1>();
}
void foo()
{
a<0>();
}
Cppcheck output:
test.cpp:4:5: information: TemplateSimplifier: max template recursion (100) reached for template'a<101>'. You might want to limit Cppcheck recursion. [templateRecursion]
a<i+1>();
^
As you can see Cppcheck has instantiated a<i+1> until a<101> was reached and then it bails out.
To limit template recursion you can:
- add template specialisation
- configure
Cppcheck, which can be done in the GUI project file dialog
Example code with template specialisation:
template <int i>
void a()
{
a<i+1>();
}
void foo()
{
a<0>();
}
#ifdef __cppcheck__
template<> void a<3>() {}
#endif
You can pass -D__cppcheck__ when checking this code.
Cppcheck build folder
Using a Cppcheck build folder is not mandatory but it is recommended. Cppcheck save analyzer information in that folder.
The advantages are:
- It speeds up the analysis as it makes incremental analysis possible. Only changed files are analyzed when you recheck.
- Whole program analysis also when multiple threads are used.
On the command line you configure that through --cppcheck-build-dir=path.
Rechecking code will be much faster. Cppcheck does not analyse unchanged code. The old warnings are loaded from the build dir and reported again.
Whole program analysis does not work when multiple threads are used; unless you use a cppcheck build dir. For instance, the
unusedFunctionwarnings require whole program analysis.
Example:
mkdir b
# All files are analyzed
cppcheck --cppcheck-build-dir=b src
# Faster! Results of unchanged files are reused
cppcheck --cppcheck-build-dir=b src
Importing a project
You can import some project files and build configurations into Cppcheck.
CMake
Generate a compile database:
cmake -DCMAKE_EXPORT_COMPILE_COMMANDS=ON .
The file compile_commands.json is created in the current folder. Now run Cppcheck like this:
cppcheck --project=compile_commands.json
To ignore certain folders you can use -i. This will skip analysis of source files in the foo folder.
cppcheck --project=compile_commands.json -ifoo
Other
If you can generate a compile database, then it is possible to import that in Cppcheck.
In Linux you can use for instance the bear (build ear) utility to generate a compile database from arbitrary build tools:
bear -- make
Preprocessor Settings
If you use --project then Cppcheck will automatically use the preprocessor settings in the imported project file and likely you don’t have to configure anything extra.
If you don’t use --project then a bit of manual preprocessor configuration might be required. However Cppcheck has automatic configuration of defines.
Automatic configuration of preprocessor defines
Cppcheck automatically test different combinations of preprocessor defines to achieve as high coverage in the analysis as possible.
Here is a file that has 3 bugs (when x,y,z are assigned).
#ifdef A
x=100/0;
#ifdef B
y=100/0;
#endif
#else
z=100/0;
#endif
#ifndef C
#error C must be defined
#endif
The flag -D tells Cppcheck that a name is defined. There will be no Cppcheck analysis without this define. The flag -U tells Cppcheck that a name is not defined. There will be no Cppcheck analysis with this define.
The flag --force and --max-configs is used to control how many combinations are checked.
When -D is used, Cppcheck will only check 1 configuration unless these are used.
Example:
# test all configurations
# all bugs are found
cppcheck test.c
# only test configuration "-DA"
# No bug is found (#error)
cppcheck -DA test.c
# only test configuration "-DA -DC"
# The first bug is found
cppcheck -DA -DC test.c
# The configuration "-DC" is tested
# The last bug is found
cppcheck -UA test.c
# All configurations with "-DA" are tested
# The two first bugs are found
cppcheck --force -DA test.c
Include paths
To add an include path, use -I, followed by the path.
Cppcheck’s preprocessor basically handles includes like any other preprocessor. However, while other preprocessors stop working when they encounter a missing header, Cppcheck will just print an information message and continues parsing the code.
The purpose of this behaviour is that Cppcheck is meant to work without necessarily seeing the entire code. Actually, it is recommended to not give all include paths. While it is useful for Cppcheck to see the declaration of a class when checking the implementation of its members, passing standard library headers is discouraged, because the analysis will not work fully and lead to a longer checking time. For such cases, .cfg files are the preferred way to provide information about the implementation of functions and types to Cppcheck, see below for more information.
Platform
You should use a platform configuration that matches your target environment.
By default Cppcheck uses native platform configuration that works well if your code is compiled and executed locally.
Cppcheck has builtin configurations for Unix and Windows targets. You can easily use these with the --platform command line flag.
You can also create your own custom platform configuration in a XML file. Here is an example:
<?xml version="1"?>
<platform>
<char_bit>8</char_bit>
<default-sign>signed</default-sign>
<sizeof>
<short>2</short>
<int>4</int>
<long>4</long>
<long-long>8</long-long>
<float>4</float>
<double>8</double>
<long-double>12</long-double>
<pointer>4</pointer>
<size_t>4</size_t>
<wchar_t>2</wchar_t>
</sizeof>
</platform>
C/C++ Standard
Use --std on the command line to specify a C/C++ standard.
Cppcheck assumes that the code is compatible with the latest C/C++ standard, but it is possible to override this.
The available options are:
- c89: C code is C89 compatible
- c99: C code is C99 compatible
- c11: C code is C11 compatible
- c17: C code is C17 compatible
- c23: C code is C23 compatible (default)
- c++03: C++ code is C++03 compatible
- c++11: C++ code is C++11 compatible
- c++14: C++ code is C++14 compatible
- c++17: C++ code is C++17 compatible
- c++20: C++ code is C++20 compatible
- c++23: C++ code is C++23 compatible
- c++26: C++ code is C++26 compatible (default)
Suppressions
If you want to filter out certain errors from being generated, then it is possible to suppress these.
If you encounter a false positive, then please report it to the Cppcheck team so that it can be fixed.
Plain text suppressions
The format for an error suppression is one of:
[error id]:[filename]:[line]
[error id]:[filename2]
[error id]
The error id is the id that you want to suppress. The id of a warning is shown in brackets in the normal cppcheck text output. The suppression error id may contain * to match any sequence of tokens.
The filename may include the wildcard characters * or ?, which matches any sequence of characters or any single character respectively. It is recommended to use forward-slash / as path separator on all operating systems. The filename must match the filename in the reported warning exactly. For instance, if the warning contains a relative path, then the suppression must match that relative path.
Command line suppression
The --suppress= command line option is used to specify suppressions on the command line. Example:
cppcheck --suppress=memleak:src/file1.cpp src/
Suppressions in a file
You can create a suppressions file for example as follows:
// suppress memleak and exceptNew errors in the file src/file1.cpp
memleak:src/file1.cpp
exceptNew:src/file1.cpp
uninitvar // suppress all uninitvar errors in all files
Note that you may add empty lines and comments in the suppressions file. Comments must start with # or // and be at the start of the line, or after the suppression line.
The usage of the suppressions file is as follows:
cppcheck --suppressions-list=suppressions.txt src/
XML suppressions
You can specify suppressions in a XML file, for example as follows:
<?xml version="1.0"?>
<suppressions>
<suppress>
<id>uninitvar</id>
<fileName>src/file1.c</fileName>
<lineNumber>10</lineNumber>
<symbolName>var</symbolName>
</suppress>
</suppressions>
The XML format is extensible and may be extended with further attributes in the future.
The usage of the suppressions file is as follows:
cppcheck --suppress-xml=suppressions.xml src/
Inline suppressions
Suppressions can also be added directly in the code by adding comments that contain special keywords. Note that adding comments sacrifices the readability of the code somewhat.
This code will normally generate an error message:
void f() {
char arr[5];
arr[10] = 0;
}
The output is:
cppcheck test.c
[test.c:3]: (error) Array'arr[5]' index 10 out of bounds
To activate inline suppressions:
cppcheck --inline-suppr test.c
Format
You can suppress a warning aaaa with:
// cppcheck-suppress aaaa
Suppressing multiple ids in one comment by using []:
// cppcheck-suppress [aaaa, bbbb]
Suppressing warnings aaaa on a block of code:
// cppcheck-suppress-begin aaaa
// ...
// cppcheck-suppress-end aaaa
Suppressing multiple ids on a block of code:
// cppcheck-suppress-begin [aaaa, bbbb]
// ...
// cppcheck-suppress-end [aaaa, bbbb]
Suppressing warnings aaaa for a whole file:
// cppcheck-suppress-file aaaa
Suppressing multiple ids for a whole file:
// cppcheck-suppress-file [aaaa, bbbb]
Suppressing warnings aaaa where macro is used:
// cppcheck-suppress-macro aaaa
#define MACRO ...
// ...
x = MACRO; // <- aaaa warnings are suppressed here
Suppressing multiple ids where macro is used:
// cppcheck-suppress-macro [aaaa, bbbb]
#define MACRO ...
// ...
x = MACRO; // <- aaaa and bbbb warnings are suppressed here
Comment before code or on same line
The comment can be put before the code or at the same line as the code.
Before the code:
void f() {
char arr[5];
// cppcheck-suppress arrayIndexOutOfBounds
arr[10] = 0;
}
Or at the same line as the code:
void f() {
char arr[5];
arr[10] = 0; // cppcheck-suppress arrayIndexOutOfBounds
}
In this example there are 2 lines with code and 1 suppression comment. The suppression comment only applies to 1 line: a = b + c;.
void f() {
a = b + c; // cppcheck-suppress abc
d = e + f;
}
Multiple suppressions
For a line of code there might be several warnings you want to suppress.
There are several options;
Using 2 suppression comments before code:
void f() {
char arr[5];
// cppcheck-suppress arrayIndexOutOfBounds
// cppcheck-suppress zerodiv
arr[10] = arr[10] / 0;
}
Using 1 suppression comment before the code:
void f() {
char arr[5];
// cppcheck-suppress[arrayIndexOutOfBounds,zerodiv]
arr[10] = arr[10] / 0;
}
Comment about suppression
You can write comments about a suppression as follows:
// cppcheck-suppress[warningid] some comment
// cppcheck-suppress warningid ; some comment
// cppcheck-suppress warningid // some comment
XML output
Cppcheck can generate output in XML format. Use --xml to enable this format.
A sample command to check a file and output errors in the XML format:
cppcheck --xml file1.cpp
Here is a sample report:
<?xml version="1.0" encoding="UTF-8"?>
<results version="2">
<cppcheck version="1.66"/>
<errors>
<error id="someError" severity="error" msg="short error text" verbose="long error text" inconclusive="true" cwe="312">
<location file0="file.c" file="file.h" line="1"/>
</error>
</errors>
</results>
Each error is reported in a <error> element. Attributes:
- id
id of error, and which are valid symbolnames
- severity
error/warning/style/performance/portability/information
- msg
the error message in short format
- verbose
the error message in long format
- inconclusive (无定论的)
this attribute is only used when the error message is inconclusive
- cwe
CWE ID for the problem; note that this attribute is only used when the CWE ID for the message is known
- remark
Optional attribute. The related remark/justification from a remark comment.
All locations related to an error are listed with <location> elements. The primary location is listed first.
Attributes:
- file
filename, both relative and absolute paths are possible
- file0
name of the source file (optional)
- line
line number
- info
short information for each location (optional)
Reformatting the text output
If you want to reformat the output so that it looks different, then you can use templates.
Predefined output formats
To get gcc compatible output you can use –template=gcc:
cppcheck --template=gcc samples/arrayIndexOutOfBounds/bad.c
User defined output format (single line)
You can write your own pattern. For instance:
cppcheck --template="{file}:{line}:{column}: {severity}:{message}" samples/arrayIndexOutOfBounds/bad.c
The output will then look like this:
Checking samples/arrayIndexOutOfBounds/bad.c ...
samples/arrayIndexOutOfBounds/bad.c:6:6: error: Array 'a[2]' accessed at index 2, which is out of bounds.
A comma separated format:
cppcheck --template="{file},{line},{severity},{id},{message}" samples/arrayIndexOutOfBounds/bad.c
The output will look like this:
Checking samples/arrayIndexOutOfBounds/bad.c ...
samples/arrayIndexOutOfBounds/bad.c,6,error,arrayIndexOutOfBounds, Array'a[2]' accessed at index 2, which is out of bounds.
User defined output format (multi line)
Many warnings have multiple locations. Example code:
void f(int *p)
{
*p = 3; // line 3
}
int main()
{
int *p = 0; // line 8
f(p); // line 9
return 0;
}
There is a possible null pointer dereference at line 3. Cppcheck can show how it came to that conclusion by showing extra location information. You need to use both –template and –template-location at the command line, for example:
cppcheck --template="{file}:{line}: {severity}: {message}\n{code}" --template-location="{file}:{line}: note: {info}\n{code}" multiline.c

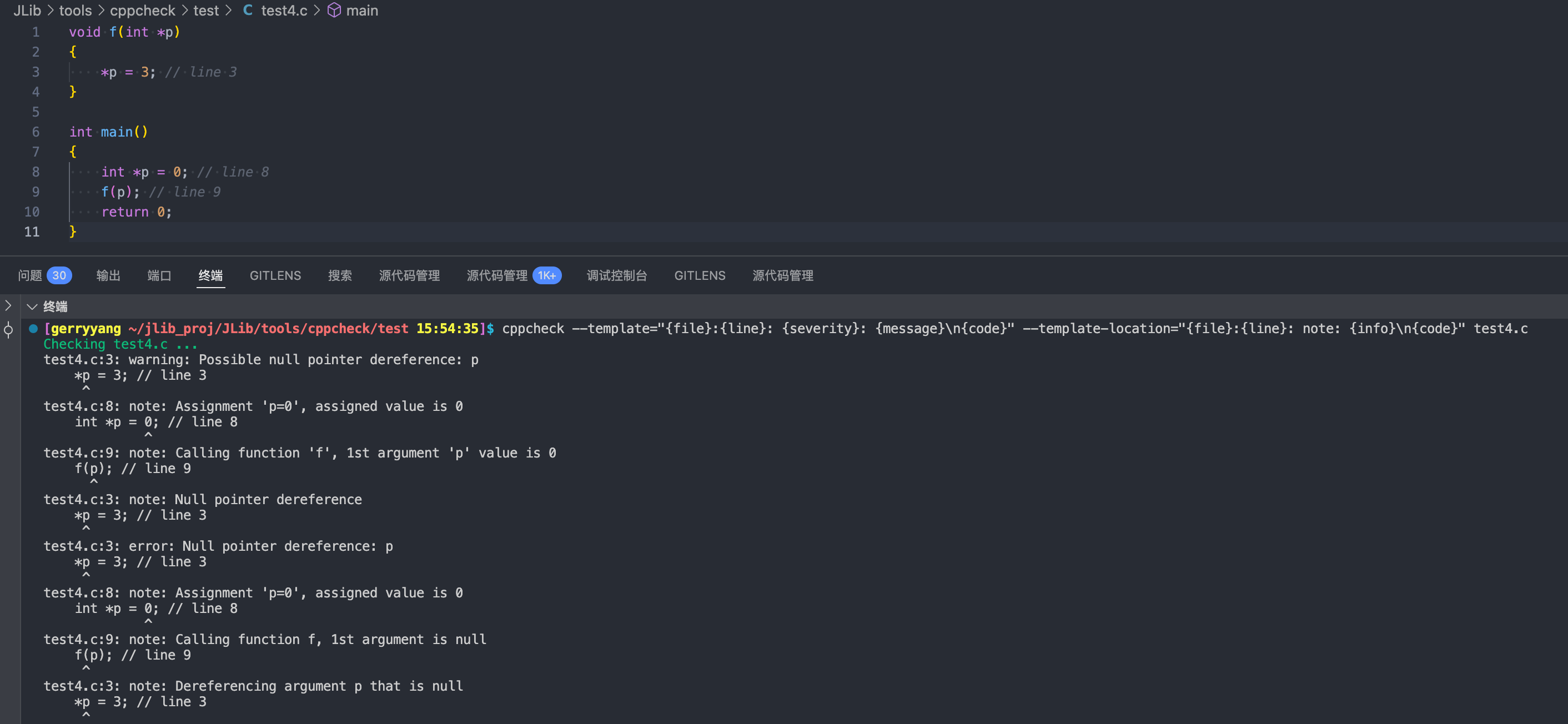

The output from Cppcheck is:
- The first line in the warning is formatted by the
–templateformat. - The other lines in the warning are formatted by the
–template-locationformat.
Format specifiers for –template
The available specifiers for –template are:
{file}
File name
{line}
Line number
{column}
Column number
{callstack}
Write all locations. Each location is written in [{file}:{line}] format and the locations are separated by ->. For instance it might look like: [multiline.c:8] -> [multiline.c:9] -> [multiline.c:3]
{inconclusive:text}
If warning is inconclusive, then the given text is written. The given text can be any text that does not contain }. Example: {inconclusive:inconclusive,}
{severity}
error/warning/style/performance/portability/information
{message}
The warning message
{id}
Warning id
{remark}
The remark text if a remark comment has been provided
{code}
The real code
\t
Tab
\n
Newline
\r
Carriage return
Format specifiers for –template-location
The available specifiers for --template-location are:
{file}
File name
{line}
Line number
{column}
Column number
{info}
Information message about the current location
{code}
The real code
\t
Tab
\n
Newline
\r
Carriage return
Justifications for warnings in the report
You can add remark comments in the source code that justify why there is a warning/violation.
Such a remark comment shall:
- start with
REMARK. - can either be added above the source code that generates the warning, or after the code on the same line.
Example code:
void foo() {
// REMARK Initialize x with 0
int x = 0;
}

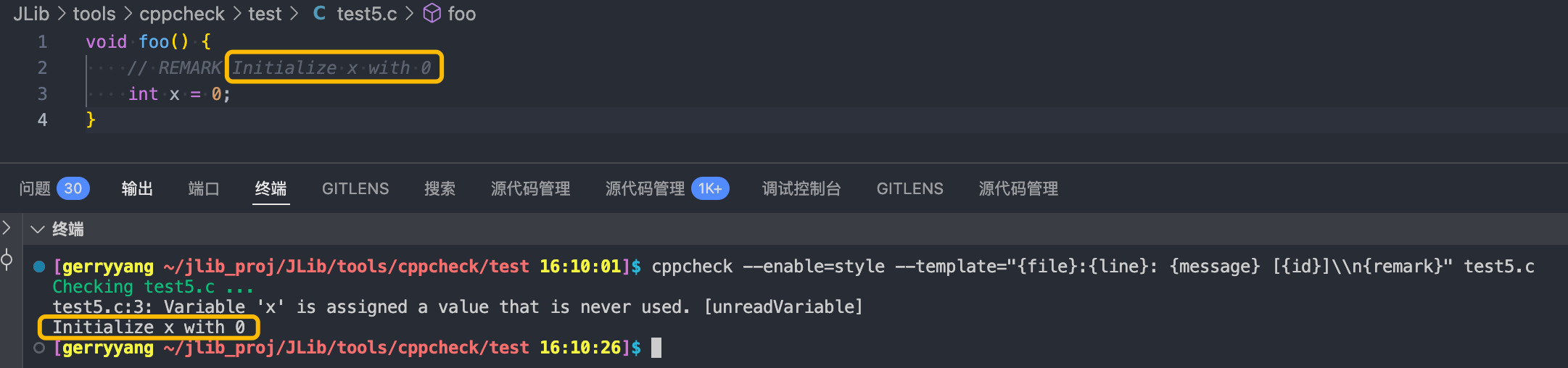

In Cppcheck text output the remarks are not shown by default, you can use --template option {remark} to show remarks:
cppcheck --enable=style --template="{file}:{line}: {message} [{id}]\\n{remark}" test1.c
Addons
Addons are scripts that analyse Cppcheck dump files to check compatibility with secure coding standards and to locate issues.
Cppcheck is distributed with a few addons which are listed below.
misra.py
misra.py is used to verify compliance with MISRA C 2012, a proprietary set of guidelines to avoid questionable code, developed for embedded systems.
y2038.py
y2038.py checks Linux systems for year 2038 problem safety.
threadsafety.py
threadsafety.py analyses Cppcheck dump files to locate thread safety issues like static local objects used by multiple threads.
Running Addons
Addons could be run through Cppcheck command line utility as follows:
cppcheck --addon=misra.py somefile.c
This will launch all Cppcheck checks and additionally calls specific checks provided by selected addon.
Some addons need extra arguments. You can configure how you want to execute an addon in a json file. For example put this in misra.json:
{
"script": "misra.py",
"args": [
"--rule-texts=misra.txt"
]
}
And then the configuration can be executed on the Cppcheck command line:
cppcheck --addon=misra.json somefile.c
By default Cppcheck would search addon at the standard path which was specified during the installation process. You also can set this path directly, for example:
cppcheck --addon=/opt/cppcheck/configurations/my_misra.json somefile.c
This allows you to create and manage multiple configuration files for different projects.
Library configuration
When external libraries are used, such as WinAPI, POSIX, gtk, Qt, etc, Cppcheck has no information about functions, types, or macros contained in those libraries. Cppcheck then fails to detect various problems in the code, or might even abort the analysis. But this can be fixed by using the appropriate configuration files.
Cppcheck already contains configurations for several libraries. They can be loaded as described below. Note that the configuration for the standard libraries of C and C++, std.cfg, is always loaded by cppcheck. If you create or update a configuration file for a popular library, we would appreciate if you supplied it to the cppcheck project.
Using a .cfg file
To use a .cfg file shipped with cppcheck, pass the --library=<lib> option. The table below shows the currently existing libraries:
Creating a custom .cfg file
You can create and use your own .cfg files for your projects. Use --check-library to get hints about what you should configure.
The .cfg file format is documented in the Reference: Cppcheck .cfg format (https://cppcheck.sourceforge.io/reference-cfg-format.pdf) document.
HTML Report
You can convert the XML output from Cppcheck into a HTML report.
You’ll need Python and the pygments module (http://pygments.org/) for this to work.
In the Cppcheck source tree there is a folder htmlreport that contains a script that transforms a Cppcheck XML file into HTML output.

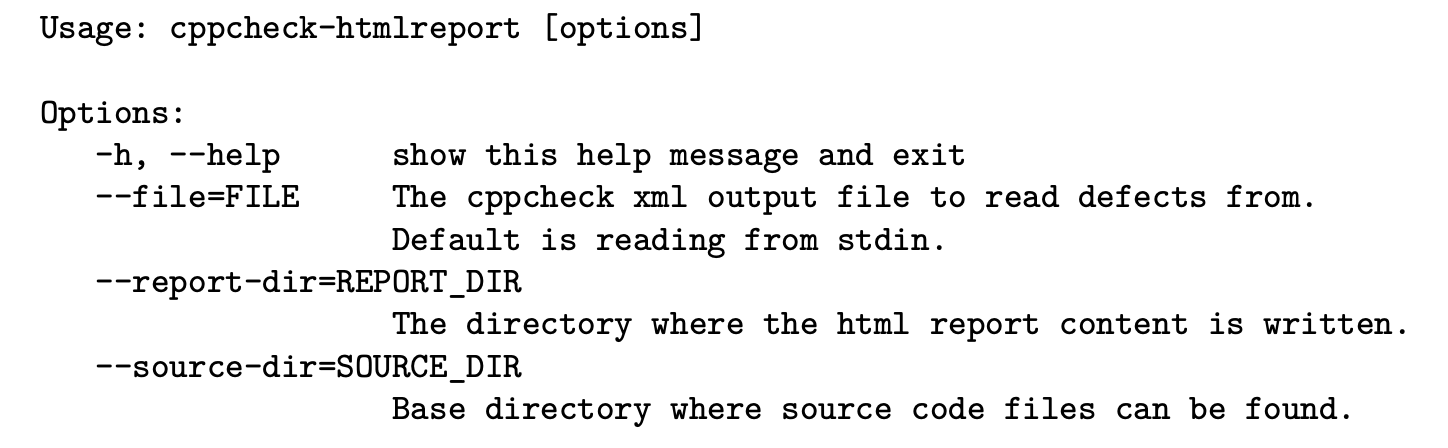

This command generates the help screen:
htmlreport/cppcheck-htmlreport -h
The output screen says:
Example usage:
cppcheck gui/test.cpp --xml 2> err.xml
cppcheck-htmlreport --file=err.xml --report-dir=test1 --source-dir=.
Check Level
Reduced
The “reduced” check level performs a limited data flow analysis. If developers want to run cppcheck directly during development and require faster results than “normal” provides then this reduced checking can be an option.
Normal
The “normal” check level is chosen by default. Our aim is that this checking level will provide an effective checking in “reasonable” time.
The “normal” check level should be useful during active development:
- checking files while you edit them.
- block changes to the repo
- etc
Exhaustive (详尽无遗的)
When you can wait longer for the results you can enable the “exhaustive” checking, by using the option --check-level=exhaustive.
Exhaustive checking level should be useful for scenarios where you can wait for results. For instance:
- nightly builds
- etc
Speeding up analysis
Limit preprocessor configurations
For performance reasons it might be a good idea to limit preprocessor configurations to check.
Limit ValueFlow: max if count
The command line option --performance-valueflow-max-if-count adjusts the max count for number of if in a function.
cppcheck –doc
$ cppcheck --doc
## 64-bit portability ##
Check if there is 64-bit portability issues:
- assign address to/from int/long
- casting address from/to integer when returning from function
## Assert ##
Warn if there are side effects in assert statements (since this cause different behaviour in debug/release builds).
## Auto Variables ##
A pointer to a variable is only valid as long as the variable is in scope.
Check:
- returning a pointer to auto or temporary variable
- assigning address of an variable to an effective parameter of a function
- returning reference to local/temporary variable
- returning address of function parameter
- suspicious assignment of pointer argument
- useless assignment of function argument
## Boolean ##
Boolean type checks
- using increment on boolean
- comparison of a boolean expression with an integer other than 0 or 1
- comparison of a function returning boolean value using relational operator
- comparison of a boolean value with boolean value using relational operator
- using bool in bitwise expression
- pointer addition in condition (either dereference is forgot or pointer overflow is required to make the condition false)
- Assigning bool value to pointer or float
- Returning an integer other than 0 or 1 from a function with boolean return value
## Bounds checking ##
Out of bounds checking:
- Array index out of bounds
- Pointer arithmetic overflow
- Buffer overflow
- Dangerous usage of strncat()
- Using array index before checking it
- Partial string write that leads to buffer that is not zero terminated.
- Check for large enough arrays being passed to functions
- Allocating memory with a negative size
## Check function usage ##
Check function usage:
- missing 'return' in non-void function
- return value of certain functions not used
- invalid input values for functions
- Warn if a function is called whose usage is discouraged
- memset() third argument is zero
- memset() with a value out of range as the 2nd parameter
- memset() with a float as the 2nd parameter
- copy elision optimization for returning value affected by std::move
- use memcpy()/memset() instead of for loop
## Class ##
Check the code for each class.
- Missing constructors and copy constructors
- Constructors which should be explicit
- Are all variables initialized by the constructors?
- Are all variables assigned by 'operator='?
- Warn if memset, memcpy etc are used on a class
- Warn if memory for classes is allocated with malloc()
- If it's a base class, check that the destructor is virtual
- Are there unused private functions?
- 'operator=' should check for assignment to self
- Constness for member functions
- Order of initializations
- Suggest usage of initialization list
- Initialization of a member with itself
- Suspicious subtraction from 'this'
- Call of pure virtual function in constructor/destructor
- Duplicated inherited data members
- Check that arbitrary usage of public interface does not result in division by zero
- Delete "self pointer" and then access 'this'
- Check that the 'override' keyword is used when overriding virtual functions
- Check that the 'one definition rule' is not violated
## Condition ##
Match conditions with assignments and other conditions:
- Mismatching assignment and comparison => comparison is always true/false
- Mismatching lhs and rhs in comparison => comparison is always true/false
- Detect usage of | where & should be used
- Duplicate condition and assignment
- Detect matching 'if' and 'else if' conditions
- Mismatching bitand (a &= 0xf0; a &= 1; => a = 0)
- Opposite inner condition is always false
- Identical condition after early exit is always false
- Condition that is always true/false
- Mutual exclusion over || always evaluating to true
- Comparisons of modulo results that are always true/false.
- Known variable values => condition is always true/false
- Invalid test for overflow. Some mainstream compilers remove such overflow tests when optimising code.
- Suspicious assignment of container/iterator in condition => condition is always true.
## Exception Safety ##
Checking exception safety
- Throwing exceptions in destructors
- Throwing exception during invalid state
- Throwing a copy of a caught exception instead of rethrowing the original exception
- Exception caught by value instead of by reference
- Throwing exception in noexcept, nothrow(), __attribute__((nothrow)) or __declspec(nothrow) function
- Unhandled exception specification when calling function foo()
- Rethrow without currently handled exception
## IO using format string ##
Check format string input/output operations.
- Bad usage of the function 'sprintf' (overlapping data)
- Missing or wrong width specifiers in 'scanf' format string
- Use a file that has been closed
- File input/output without positioning results in undefined behaviour
- Read to a file that has only been opened for writing (or vice versa)
- Repositioning operation on a file opened in append mode
- The same file can't be open for read and write at the same time on different streams
- Using fflush() on an input stream
- Invalid usage of output stream. For example: 'std::cout << std::cout;'
- Wrong number of arguments given to 'printf' or 'scanf;'
## Leaks (auto variables) ##
Detect when a auto variable is allocated but not deallocated or deallocated twice.
## Memory leaks (address not taken) ##
Not taking the address to allocated memory
## Memory leaks (class variables) ##
If the constructor allocate memory then the destructor must deallocate it.
## Memory leaks (function variables) ##
Is there any allocated memory when a function goes out of scope
## Memory leaks (struct members) ##
Don't forget to deallocate struct members
## Null pointer ##
Null pointers
- null pointer dereferencing
- undefined null pointer arithmetic
## Other ##
Other checks
- division with zero
- scoped object destroyed immediately after construction
- assignment in an assert statement
- free() or delete of an invalid memory location
- bitwise operation with negative right operand
- cast the return values of getc(),fgetc() and getchar() to character and compare it to EOF
- race condition with non-interlocked access after InterlockedDecrement() call
- expression 'x = x++;' depends on order of evaluation of side effects
- overlapping write of union
- either division by zero or useless condition
- access of moved or forwarded variable.
- potentially dangerous C style type cast of pointer/reference to object.
- redundant data copying for const variable
- subsequent assignment or copying to a variable or buffer
- passing parameter by value
- Passing NULL pointer to function with variable number of arguments leads to UB.
- Casting non-zero integer literal in decimal or octal format to pointer.
- C-style pointer cast in C++ code
- casting between incompatible pointer types
- [Incomplete statement](IncompleteStatement)
- [check how signed char variables are used](CharVar)
- variable scope can be limited
- unusual pointer arithmetic. For example: "abc" + 'd'
- redundant assignment, increment, or bitwise operation in a switch statement
- redundant strcpy in a switch statement
- Suspicious case labels in switch()
- assignment of a variable to itself
- Comparison of values leading always to true or false
- Clarify calculation with parentheses
- suspicious comparison of '\0' with a char\* variable
- duplicate break statement
- unreachable code
- testing if unsigned variable is negative/positive
- Suspicious use of ; at the end of 'if/for/while' statement.
- Array filled incompletely using memset/memcpy/memmove.
- NaN (not a number) value used in arithmetic expression.
- comma in return statement (the comma can easily be misread as a semicolon).
- prefer erfc, expm1 or log1p to avoid loss of precision.
- identical code in both branches of if/else or ternary operator.
- redundant pointer operation on pointer like &\*some_ptr.
- find unused 'goto' labels.
- function declaration and definition argument names different.
- function declaration and definition argument order different.
- shadow variable.
- variable can be declared const.
- calculating modulo of one.
- known function argument, suspicious calculation.
## STL usage ##
Check for invalid usage of STL:
- out of bounds errors
- misuse of iterators when iterating through a container
- mismatching containers in calls
- same iterators in calls
- dereferencing an erased iterator
- for vectors: using iterator/pointer after push_back has been used
- optimisation: use empty() instead of size() to guarantee fast code
- suspicious condition when using find
- unnecessary searching in associative containers
- redundant condition
- common mistakes when using string::c_str()
- useless calls of string and STL functions
- dereferencing an invalid iterator
- erasing an iterator that is out of bounds
- reading from empty STL container
- iterating over an empty STL container
- consider using an STL algorithm instead of raw loop
- incorrect locking with mutex
## Sizeof ##
sizeof() usage checks
- sizeof for array given as function argument
- sizeof for numeric given as function argument
- using sizeof(pointer) instead of the size of pointed data
- look for 'sizeof sizeof ..'
- look for calculations inside sizeof()
- look for function calls inside sizeof()
- look for suspicious calculations with sizeof()
- using 'sizeof(void)' which is undefined
## String ##
Detect misusage of C-style strings:
- overlapping buffers passed to sprintf as source and destination
- incorrect length arguments for 'substr' and 'strncmp'
- suspicious condition (runtime comparison of string literals)
- suspicious condition (string/char literals as boolean)
- suspicious comparison of a string literal with a char\* variable
- suspicious comparison of '\0' with a char\* variable
- overlapping strcmp() expression
## Type ##
Type checks
- bitwise shift by too many bits (only enabled when --platform is used)
- signed integer overflow (only enabled when --platform is used)
- dangerous sign conversion, when signed value can be negative
- possible loss of information when assigning int result to long variable
- possible loss of information when returning int result as long return value
- float conversion overflow
## Uninitialized variables ##
Uninitialized variables
- using uninitialized local variables
- using allocated data before it has been initialized
## UnusedVar ##
UnusedVar checks
- unused variable
- allocated but unused variable
- unread variable
- unassigned variable
- unused struct member
## Using postfix operators ##
Warn if using postfix operators ++ or -- rather than prefix operator
## Vaarg ##
Check for misusage of variable argument lists:
- Wrong parameter passed to va_start()
- Reference passed to va_start()
- Missing va_end()
- Using va_list before it is opened
- Subsequent calls to va_start/va_copy()
Usage
cppcheck $DIR --check-level=normal --checkers-report=cppcheck-report.txt --clang=/usr/local/bin/clang --enable=all --platform=unix64 --report-progress --showtime=file --std=c++17 --inconclusive --verbose -j8
$ ./cppcheck --help
Cppcheck - A tool for static C/C++ code analysis
Syntax:
cppcheck [OPTIONS] [files or paths]
If a directory is given instead of a filename, *.cpp, *.cxx, *.cc, *.c++, *.c, *.ipp,
*.ixx, *.tpp, and *.txx files are checked recursively from the given directory.
Options:
--addon=<addon>
Execute addon. i.e. --addon=misra. If options must be
provided a json configuration is needed.
--addon-python=<python interpreter>
You can specify the python interpreter either in the
addon json files or through this command line option.
If not present, Cppcheck will try "python3" first and
then "python".
--cppcheck-build-dir=<dir>
Cppcheck work folder. Advantages:
* whole program analysis
* faster analysis; Cppcheck will reuse the results if
the hash for a file is unchanged.
* some useful debug information, i.e. commands used to
execute clang/clang-tidy/addons.
--check-config Check cppcheck configuration. The normal code
analysis is disabled by this flag.
--check-level=<level>
Configure how much valueflow analysis you want:
* reduced: Reduce valueflow to finish checking quickly.
* normal: Cppcheck uses some compromises in the analysis so
the checking will finish in reasonable time.
* exhaustive: deeper analysis that you choose when you can
wait.
The default choice is 'normal'.
--check-library Show information messages when library files have
incomplete info.
--checkers-report=<file>
Write a report of all the active checkers to the given file.
--clang=<path> Experimental: Use Clang parser instead of the builtin Cppcheck
parser. Takes the executable as optional parameter and
defaults to `clang`. Cppcheck will run the given Clang
executable, import the Clang AST and convert it into
Cppcheck data. After that the normal Cppcheck analysis is
used. You must have the executable in PATH if no path is
given.
--config-exclude=<dir>
Path (prefix) to be excluded from configuration
checking. Preprocessor configurations defined in
headers (but not sources) matching the prefix will not
be considered for evaluation.
--config-excludes-file=<file>
A file that contains a list of config-excludes
--disable=<id> Disable individual checks.
Please refer to the documentation of --enable=<id>
for further details.
--dump Dump xml data for each translation unit. The dump
files have the extension .dump and contain ast,
tokenlist, symboldatabase, valueflow.
-D<ID> Define preprocessor symbol. Unless --max-configs or
--force is used, Cppcheck will only check the given
configuration when -D is used.
Example: '-DDEBUG=1 -D__cplusplus'.
-E Print preprocessor output on stdout and don't do any
further processing.
--enable=<id> Enable additional checks. The available ids are:
* all
Enable all checks. It is recommended to only
use --enable=all when the whole program is
scanned, because this enables unusedFunction.
* warning
Enable warning messages
* style
Enable all coding style checks. All messages
with the severities 'style', 'warning',
'performance' and 'portability' are enabled.
* performance
Enable performance messages
* portability
Enable portability messages
* information
Enable information messages
* unusedFunction
Check for unused functions. It is recommended
to only enable this when the whole program is
scanned.
* missingInclude
Warn if there are missing includes.
Several ids can be given if you separate them with
commas. See also --std
--error-exitcode=<n> If errors are found, integer [n] is returned instead of
the default '0'. '1' is returned
if arguments are not valid or if no input files are
provided. Note that your operating system can modify
this value, e.g. '256' can become '0'.
--errorlist Print a list of all the error messages in XML format.
--exitcode-suppressions=<file>
Used when certain messages should be displayed but
should not cause a non-zero exitcode.
--file-filter=<str> Analyze only those files matching the given filter str
Can be used multiple times
Example: --file-filter=*bar.cpp analyzes only files
that end with bar.cpp.
--file-list=<file> Specify the files to check in a text file. Add one
filename per line. When file is '-,' the file list will
be read from standard input.
-f, --force Force checking of all configurations in files. If used
together with '--max-configs=', the last option is the
one that is effective.
--fsigned-char Treat char type as signed.
--funsigned-char Treat char type as unsigned.
-h, --help Print this help.
-I <dir> Give path to search for include files. Give several -I
parameters to give several paths. First given path is
searched for contained header files first. If paths are
relative to source files, this is not needed.
--includes-file=<file>
Specify directory paths to search for included header
files in a text file. Add one include path per line.
First given path is searched for contained header
files first. If paths are relative to source files,
this is not needed.
--include=<file>
Force inclusion of a file before the checked file.
-i <str> Exclude source files or directories matching str from
the check. This applies only to source files so header
files included by source files are not matched.
--inconclusive Allow that Cppcheck reports even though the analysis is
inconclusive.
There are false positives with this option. Each result
must be carefully investigated before you know if it is
good or bad.
--inline-suppr Enable inline suppressions. Use them by placing one or
more comments, like: '// cppcheck-suppress warningId'
on the lines before the warning to suppress.
-j <jobs> Start <jobs> threads to do the checking simultaneously.
-l <load> Specifies that no new threads should be started if
there are other threads running and the load average is
at least <load>.
--language=<language>, -x <language>
Forces cppcheck to check all files as the given
language. Valid values are: c, c++
--library=<cfg> Load file <cfg> that contains information about types
and functions. With such information Cppcheck
understands your code better and therefore you
get better results. The std.cfg file that is
distributed with Cppcheck is loaded automatically.
For more information about library files, read the
manual.
--max-configs=<limit>
Maximum number of configurations to check in a file
before skipping it. Default is '12'. If used together
with '--force', the last option is the one that is
effective.
--max-ctu-depth=N Max depth in whole program analysis. The default value
is 2. A larger value will mean more errors can be found
but also means the analysis will be slower.
--output-file=<file> Write results to file, rather than standard error.
--output-format=<format>
Specify the output format. The available formats are:
* text
* sarif
* xml
--platform=<type>, --platform=<file>
Specifies platform specific types and sizes. The
available builtin platforms are:
* unix32
32 bit unix variant
* unix64
64 bit unix variant
* win32A
32 bit Windows ASCII character encoding
* win32W
32 bit Windows UNICODE character encoding
* win64
64 bit Windows
* avr8
8 bit AVR microcontrollers
* elbrus-e1cp
Elbrus e1c+ architecture
* pic8
8 bit PIC microcontrollers
Baseline and mid-range architectures
* pic8-enhanced
8 bit PIC microcontrollers
Enhanced mid-range and high end (PIC18) architectures
* pic16
16 bit PIC microcontrollers
* mips32
32 bit MIPS microcontrollers
* native
Type sizes of host system are assumed, but no
further assumptions.
* unspecified
Unknown type sizes
--plist-output=<path>
Generate Clang-plist output files in folder.
--project=<file> Run Cppcheck on project. The <file> can be a Visual
Studio Solution (*.sln), Visual Studio Project
(*.vcxproj), compile database (compile_commands.json),
or Borland C++ Builder 6 (*.bpr). The files to analyse,
include paths, defines, platform and undefines in
the specified file will be used.
--project-configuration=<config>
If used together with a Visual Studio Solution (*.sln)
or Visual Studio Project (*.vcxproj) you can limit
the configuration cppcheck should check.
For example: '--project-configuration=Release|Win32'
-q, --quiet Do not show progress reports.
Note that this option is not mutually exclusive with --verbose.
-rp=<paths>, --relative-paths=<paths>
Use relative paths in output. When given, <paths> are
used as base. You can separate multiple paths by ';'.
Otherwise path where source files are searched is used.
We use string comparison to create relative paths, so
using e.g. ~ for home folder does not work. It is
currently only possible to apply the base paths to
files that are on a lower level in the directory tree.
--report-progress Report progress messages while checking a file (single job only).
--report-type=<type> Add guideline and classification fields for specified coding standard.
The available report types are:
* normal Default, only show cppcheck error ID and severity
* autosar Autosar
* cert-c-2016 Cert C 2016
* cert-cpp-2016 Cert C++ 2016
* misra-c-2012 Misra C 2012
* misra-c-2023 Misra C 2023
* misra-c-2025 Misra C 2025
* misra-cpp-2008 Misra C++ 2008
* misra-cpp-2023 Misra C++ 2023
--rule=<rule> Match regular expression.
--rule-file=<file> Use given rule file. For more information, see:
http://sourceforge.net/projects/cppcheck/files/Articles/
--safety Enable safety-certified checking mode: display checker summary, enforce
stricter checks for critical errors, and return a non-zero exit code
if such errors occur.
--showtime=<mode> Show timing information.
The available modes are:
* none
Show nothing (default)
* file
Show for each processed file
* file-total
Show total time only for each processed file
* summary
Show a summary at the end
* top5_file
Show the top 5 for each processed file
* top5_summary
Show the top 5 summary at the end
--std=<id> Set standard.
The available options are:
* c89
C code is C89 compatible
* c99
C code is C99 compatible
* c11
C code is C11 compatible (default)
* c++03
C++ code is C++03 compatible
* c++11
C++ code is C++11 compatible
* c++14
C++ code is C++14 compatible
* c++17
C++ code is C++17 compatible
* c++20
C++ code is C++20 compatible (default)
--suppress=<spec> Suppress warnings that match <spec>. The format of
<spec> is:
[error id]:[filename]:[line]
The [filename] and [line] are optional. If [error id]
is a wildcard '*', all error ids match.
--suppressions-list=<file>
Suppress warnings listed in the file. Each suppression
is in the same format as <spec> above.
--suppress-xml=<file>
Suppress warnings listed in a xml file. XML file should
follow the manual.pdf format specified in section.
`6.4 XML suppressions` .
--template='<text>' Format the error messages. Available fields:
{file} file name
{line} line number
{column} column number
{callstack} show a callstack. Example:
[file.c:1] -> [file.c:100]
{inconclusive:text} if warning is inconclusive, text
is written
{severity} severity
{message} warning message
{id} warning id
{cwe} CWE id (Common Weakness Enumeration)
{code} show the real code
\t insert tab
\n insert newline
\r insert carriage return
Example formats:
'{file}:{line},{severity},{id},{message}' or
'{file}({line}):({severity}) {message}' or
'{callstack} {message}'
Pre-defined templates: gcc (default), cppcheck1 (old default), vs, edit.
--template-location='<text>'
Format error message location. If this is not provided
then no extra location info is shown.
Available fields:
{file} file name
{line} line number
{column} column number
{info} location info
{code} show the real code
\t insert tab
\n insert newline
\r insert carriage return
Example format (gcc-like):
'{file}:{line}:{column}: note: {info}\n{code}'
-U<ID> Undefine preprocessor symbol. Use -U to explicitly
hide certain #ifdef <ID> code paths from checking.
Example: '-UDEBUG'
-v, --verbose Output more detailed error information.
Note that this option is not mutually exclusive with --quiet.
--version Print out version number.
--xml Write results in xml format to error stream (stderr).
Example usage:
# Recursively check the current folder. Print the progress on the screen and
# write errors to a file:
cppcheck . 2> err.txt
# Recursively check ../myproject/ and don't print progress:
cppcheck --quiet ../myproject/
# Check test.cpp, enable all checks:
cppcheck --enable=all --inconclusive --library=posix test.cpp
# Check f.cpp and search include files from inc1/ and inc2/:
cppcheck -I inc1/ -I inc2/ f.cpp
For more information:
https://files.cppchecksolutions.com/manual.pdf
Many thanks to the 3rd party libraries we use:
* tinyxml2 -- loading project/library/ctu files.
* picojson -- loading compile database.
* pcre -- rules.
* qt -- used in GUI
Tips
# get list of checks
cppcheck --doc
# get list of error messages
cppcheck --errorlist
参考脚本
run_cppcheck_by_dir.sh
#!/bin/bash
# Cppcheck 2.18.0
# https://github.com/danmar/cppcheck/releases/tag/2.18.0
#
# Usage: run_cppcheck_by_dir.sh [<directory>]
# If no directory is specified, it defaults to the current directory.
# Example: ./run_cppcheck_by_dir.sh /path/to/directory
set -euo pipefail
# Configuration parameters
DIR="${1:-.}" # Default to current directory if no argument is provided
WORKDIR="$HOME/jlib_proj/JLib/tools/cppcheck/workdir"
OUTPUT_FILE="cppcheck.output"
REPORT_FILE="cppcheck.report"
ERROR_FILE="cppcheck.error"
# Number of threads to use for parallel processing
# Default to number of CPU cores if not set
THREADS="${THREADS:-$(nproc)}"
# Check if cppcheck is installed
if ! command -v cppcheck &> /dev/null; then
echo "cppcheck command not found. Please install cppcheck."
exit 1
fi
# Clean workdir cache
mkdir -p "$WORKDIR"
rm $WORKDIR/* || true
# Run cppcheck
# --template="{file}:{line}:{column}: {severity}:{message}" \
cppcheck "$DIR" \
--cppcheck-build-dir="$WORKDIR" \
-j "$THREADS" \
--enable=all \
--platform=unix64 \
--std=c++17 \
--inconclusive \
--force \
--output-format=text \
--output-file="$OUTPUT_FILE" \
--checkers-report="$REPORT_FILE" \
--inline-suppr \
--verbose \
-D__cppcheck__ \
--template="{file}:{line}:{column}: {severity}:{message}" \
2> >(tee "$ERROR_FILE" >&2)
echo "Check completed. Output saved to: $OUTPUT_FILE"
echo "Detailed error log: $ERROR_FILE"
run_cppcheck_by_compile_database.sh
#!/bin/bash
# Cppcheck 2.18.0
# https://github.com/danmar/cppcheck/releases/tag/2.18.0
#
# Usage: run_jlib_cppcheck_by_compile_database.sh </path/to/compile_commands.json>
# Example: ./run_jlib_cppcheck_by_compile_database.sh /path/to/compile_commands.json
set -euo pipefail
# Configuration parameters
COMPILE_COMMANDS_FILE="${1:-$HOME/jlib_proj/JLib/compile_commands.json}" # Path to compile_commands.json
WORKDIR="$HOME/jlib_proj/JLib/tools/cppcheck/workdir"
OUTPUT_FILE="cppcheck.output"
REPORT_FILE="cppcheck.report"
ERROR_FILE="cppcheck.error"
CLANG_PATH="${CLANG_PATH:-/usr/local/bin/clang}" # Clang path (if needed)
THREADS="${THREADS:-$(nproc)}" # Automatically get CPU core count
# Check if cppcheck is installed
if ! command -v cppcheck &> /dev/null; then
echo "cppcheck command not found. Please install cppcheck."
exit 1
fi
# Clean workdir cache
mkdir -p "$WORKDIR"
rm $WORKDIR/* || true
# Run cppcheck
cppcheck -i$HOME/jlib_proj/JLib/third_party \
-j "$THREADS" \
--enable=all \
--cppcheck-build-dir=$WORKDIR \
--project=$COMPILE_COMMANDS_FILE \
--platform=unix64 \
--std=c++17 \
--inconclusive \
--force \
--output-format=text \
--output-file="$OUTPUT_FILE" \
--checkers-report="$REPORT_FILE" \
--suppress=missingInclude \
--suppress=missingIncludeSystem \
--suppress=cstyleCast \
--suppress=unusedFunction \
--inline-suppr \
2> >(tee "$ERROR_FILE" >&2)
echo "Check completed. Output saved to: $OUTPUT_FILE"
echo "Detailed error log: $ERROR_FILE"
Refer
- https://cppcheck.sourceforge.io/
- https://github.com/danmar/cppcheck
